Dahua/Indoor/2MP/60M/Analog
QAR475.00
5 in stock
Description

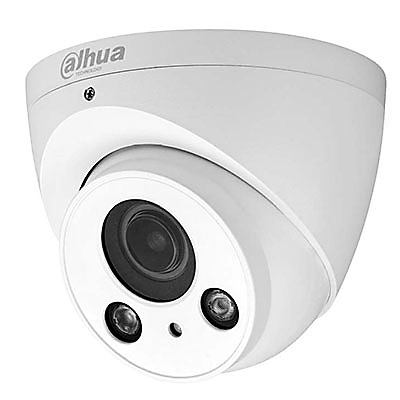

Camera – Indoor/2MP/60M/Analog Dahua DH-HAC-HDW2221RP-Z.
– 1/2.7″ 2.1Megapixel CMOS.
– 25/[email protected],25/30/50/[email protected]
– High speed, long distance real-time transmission.
– HD and SD dual-output.
– OSD Menu, control over coaxial cable.
– WDR(120dB), Day/Night(ICR), AWB, AGC, BLC, 3DNR.
– 2.7~12mm motorized lens.
– Max. IR LEDs length 60m, Smart IR.
– IP67, AC24V/DC12V.
| CAMERA | |
| Image Sensor | 1/2.7″ CMOS |
| Effective Pixels | 1928(H) x 1088(V), 2.1MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1.3s~1/30000s |
| NTSN: 1s~1/30000s | |
| Minimum Illumination | 0.03Lux/F1.4, 30IRE, 0Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 60m (197feet) |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 2 |
| LENS | |
| Lens Type | Motorized lens/ Fixed iris |
| Mount Type | Board-in |
| Focal Length | 2.7-12mm |
| Max Aperture | F1.4 |
| Angle of View | H:99°~37° |
| Focus Control | Auto / Manual |
| Close Focus Distance | 300mm 11.81″ |
| PAN/TILT/ROTATION | |
| Pan/Tilt/Rotation | Pan: 0° ~ 360° |
| Tilt: 0° ~ 67° | |
| Rotation: 0° ~ 360° | |
| VIDEO | |
| Resolution | 1080P (1920×1080) |
| Frame Rate | 25/[email protected], 25/30/50/[email protected] |
| Video Output | 1-channel BNC HDCVI high definition video output & |
| 1-channel BNC CVBS video output | |
| Day/Night | Auto(ICR)/ Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC/ HLC/ WDR |
| WDR | 120dB |
| Gain Control | AGC |
| Noise Reduction | 2D/ 3D |
| White Balance | Auto/ Manual |
| Smart IR | Auto/ Manual |
| CERTIFICATIONS | |
| Certification | CE (EN55032, EN55024, EN50130-4) |
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | |
| UL (UL60950-1 CAN/CSA C22.2 No.60950-1) | |
| INTERFACE | |
| Audio Interface | N/A |
| EELECTRICAL | |
| Power Supply | 12V DC±25% |
| Power Consumption | Max 10W (12V DC, IR on) |
| ENVIRONMENTAL | |
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F) / Less than 90% RH |
| * Start up should be done at above -30°C (-22°F) | |
| Storage Conditions | -30°C ~ 60°C (-22°F ~ 140°F) / Less than 90% RH |
| Ingress Protection & Vandal Resisitance | IP67 |
| CONSTRUCTION | |
| Casing | Aluminium |
| Dimensions | Φ122mm×104.9mm (Φ4.8″×4.13″) |
| Net Weight | 0.58KG (1.28Ib) |
| Gross Weight | 0.73KG (1.61Ib) |
